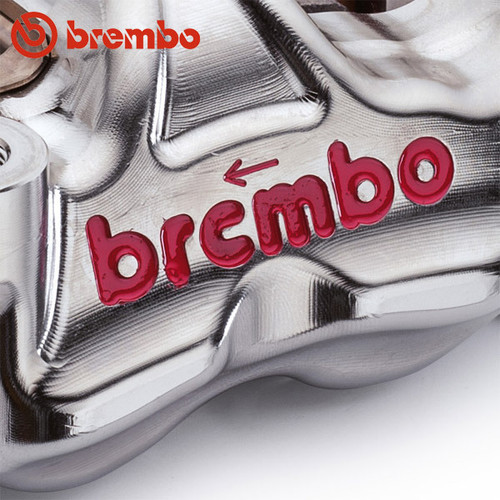

Brembo Suzuki GSX-R750 08-24 108mm Radial GP4-RX Front Caliper Kit

Click to see 4 more pictures
STG SKU:
B|1200-220B01010|41

Customer Service

  • 888.784.4327
  • Monday-Friday
  • 10am to 6pm EST
  • Saturday
  • Closed
  • Free Domestic Shipping for Orders over $99Any domestic order (lower 48 United States) over $99.00 ships for free! If your item isn't over $99 but your total cart value is, you'll qualify for free shipping as well! For more information on our Shipping Policies, click here.
  • Hassle Free Returns No Restocking FeesHere at STG we want any return or exchange to be quick and pain-free. You can contact anyone here to expedite your return or exchange and we'll make sure it's handled ASAP. For more information on our policies, click here.
  • Price Match GuaranteeFind a better price? If you have we will match it! Call us at 888.784.4327 or submit a request here and our team will make it happen. *Some exclusions may apply.

Frequently Bought Together

Please choose Options for all selected Products

  • Choose Options

This kit is designed to fit 310mm front rotors.

IMPORTANT NOTE: Installation of this Brembo Front Caliper Kit will require the Brembo Space and Screw Kit Part# 220.A061.17

The body of this caliper, which is the very best currently available, is entirely billet and is made up of two pieces which are mechanically connected. Particular attention was dedicated to finding high braking power and stiffness values, obtained tanks to painstaking design, the use of carefully selected raw materials and ultra modern metal machining technology discoveries. In particular sophisticated topological optimisation software was used capable of pointing out to the designer the areas where excess material could be eliminated and vice versa.

The hydraulics were the focus of a careful fine-tuning thanks to the use of four 32 mm diameter pistons which allowed a further increase in braking power and modularity specifications.

This model implements a surface finish borrowed from MotoGP. In fact, the nickel plating, in addition to giving it an aggressive and attractive look, allowed the already strict machining tolerances to be refined, all to the advantage of performance and operating precision.

The brake pads slide in specific guides, machined onto the body of the caliper itself, which have made it possible to eliminate brake pad pins.

The Brembo logo is embossed and hand painted in classic Brembo Red. The product, provided in a kit, includes sintered brake pads which represent the absolute best quality available on the market today. The kit also contains an instruction manual, a set of Brembo stickers and extremely useful heat adhesives used in racing to control caliper operating temperature, which are indicative of the product's racing nature.

TECHNICAL FEATURES

  • Position: FRONT
  • Caliper Body: 2-PIECES
  • Pistons mm: 32
  • Pistons Qty: 4
  • Disc height mm: 32-34
  • Material: Billet Aluminium
  • Surface protection: Nickel coating
  • Piston material: Aluminium
  • Weight w/o pads (gr): 1000
  • Mounted pads included: Yes
  • Offset (mm): 30
  • Brembo Z04 Brake Pad Part Number: 107.A486.49
  • Note: 2 calipers kit
